There are many good reasons to invest in a BELMONDO® rubber floor covering. Their range of mats support the hoof mechanism and make the animals more sure-footed, while offering an appropriate level of softness that prevents tendon and joint strain. The mats provide thermal insulation by reducing exposure to the cold from below, in turn preventing instances of muscular disorders, rheumatism and stiffness. These hygienic, low-maintenance mats dry off quickly, significantly reduce bedding usage and the volume of waste, and provide sound insulation, reducing noise levels in the stables.
Laying BELMONDO® rubber floor covering is so quick and easy – you will be able to install the mats yourself.
A robust 18mm thick mat with the required level of softness. Long-lasting, retains its shape, and suitable for use in stables and any hard surface. This hygenic mat provides sure footing and reduces the quantity of bedding required. This mat has a non-slip surface effect and is easy to clean. Rubber’s natural qualities also provide perfect insulation from radiative cooling. Made of vulcanised rubber, top surface hammer-blow design, underside has a ribbed profile, puzzle-cut on four sides. Dimensions 1000 x 1000 x 18mm, weight approx 20kg per mat.
This 18mm thick mat ticks all the boxes for a high-quality floor covering for stables and stalls. Providing animals with a sure footing, this hygienic, easy to clean, non-slip mat will save on bedding and can also even out slight irregularities in the underlying floor. Suitable for use in stables and any hard surface.
Made of vulcanised rubber, wear-free surface layer has a horseshoe texture, underside has a ribbed profile, puzzle-cut on four sides. Dimensions 1000 x 1000 x 18mm, weight approx 21kg per mat.
This 28mm thick mat provides comfort for horses when
lying down, perfectly accommodating their musculo-skeletal system. In comparison to the solid BELMONDO® Classic, the BELMONDO® Trend is designed to be softer and springier. The softer rubber compound also minimises the risk of slipping, preventing tendon damage. Designed exclusively for use in horse stables.
Made of vulcanised rubber, horseshoe texture on the top surface, wear-free protective layer, underside with raised knobs and rubber strips. Dimensions 1000 x 1000 x 28mm, weight approx. 22kg per mat.
The stable aisle can present slip hazards and pose the problem of unnecessary noise. The 11mm BELMONDO® Walkway provides a solution to these problems – muffling the clatter of hooves and providing a non-slip surface. This easy to sweep mat is also suitable for washing and grooming areas, horse trailers and trucks. Please note that it is not suitable for heavy vehicles, or horseshoes with studs.
Made of vulcanised rubber, the top surface has a horseshoe texture, underside has a ribbed profile, puzzle-cut on four sides. Dimensions 1000 x 1000 x 11mm, weight approx. 13.5kg per mat.
REGUPOL® flexible tiles allow water and urine to pass through them. The tiles should be laid loose on an even, freezeproof, crushed-stone substrate that is 25–40cm deep with an edging. A footing layer is not necessary. The tiles can be used in open stables and stalls where there is an open/porous crushed-stone substrate, as well as in wash stalls and stable aisles.
Available in reddish brown or black. Flexible tiles. Dimensions 1000 x 500 x 30mm, 27kg/m2.
REGUPOL® interlocking paving stones are permeable and extremely resilient. They can even be driven on by light agricultural machines. An extremely quiet surface that is easy to clean, with a long service life. The paving should be laid on an even, freeze-proof, crushed-stone base with an edging. It is suitable as a floor covering for stable aisles, wash stalls, wash areas (outdoors), paddocks, horse walkers and paths. Available in reddish brown or black. Interlocking paving. Dimensions 200 x 160 x 43mm.
The Rodeo rubber mat provides the stable walls with impact protection. Its shock-absorbing qualities prevent hip and leg injuries. It also reduces noise levels in your stables. The rubber mat can be easily cut to size and its texture is reminiscent of wooden planks. The underside of the Rodeo mat has a ribbed pattern. The rubber mat can either be screwed into place or the entire mat can be glued down.
Thickness approx. 11mm. Dimensions 1300 x 3500mm, weight approx. 14kg per m2.
BELMONDO® Paddock mat, made of vulcanised virgin rubber. The top surface features a diamond pattern, the underside has raised knobs with a thickness of 5mm. The appropriate level of softness supports the hoof mechanism and protects the tendons and joints. It is easy to clean, weather-resistant and freeze-proof, as well as being very durable and easy to install.
Dimensions 1000 x 1000 x 24mm, weight 23kg, puzzle-cut on four sides.
The R10 roll of matting with fabric insert has a thickness of 10mm and a weight of 10kg/m2. The top surface has a non-slip texture and the underside has a 1.5mm ribbed profile. Can also be used as kick protection for the stable wall or as a rubber cover for your horse transporter.
1650mm wide, per m2
2000mm wide, per m2
The Growi® K20 EN rubber mat is made of reliable, robust solid rubber. It has a thickness of 20mm and a weight of 18kg/m2. Simply economical – easy to lay, to fasten and to clean. Animal-friendly hammer-blow texture on the top surface, raised knobs on the underside. A durable and simple alternative.
1000 x 1300mm
1000 x 1500mm
1000 x 2000mm
1000 x 3500mm
Made of vulcanised virgin rubber, this mat is suitable for a variety of uses in wet environments. Permeable to water if
the area beneath it has drainage. Soft, non-slip and absorbs sound. Can be used as impact protection in the stable or in the washing area. Not suitable for laying in the horse stable. Dimensions 1500 x 1000 x 23mm, ring diameter 20mm
Rubber ring mat
Connector, per piece

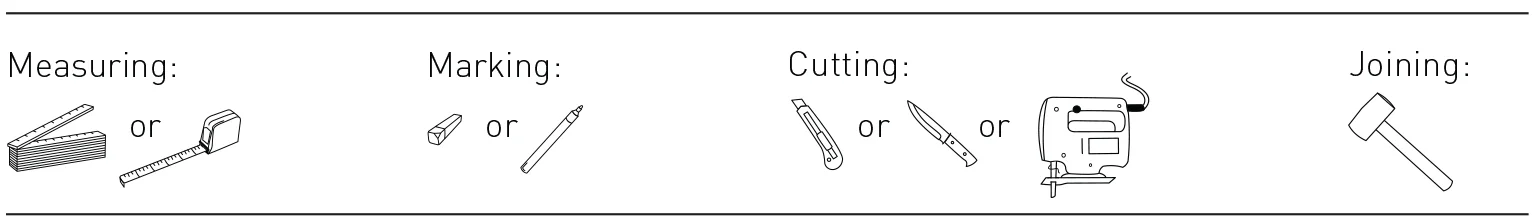

Whether rolling out matting or fitting together puzzle-cut edges, laying our mats is easy and straightforward. Here are a few tips to help you.
SURFACE MUST BE:
– clean and dry
– no holes
– all irregularities must be evened out.
Maximum incline of 2%.
Paddock at least 1%, maximum of 2%.

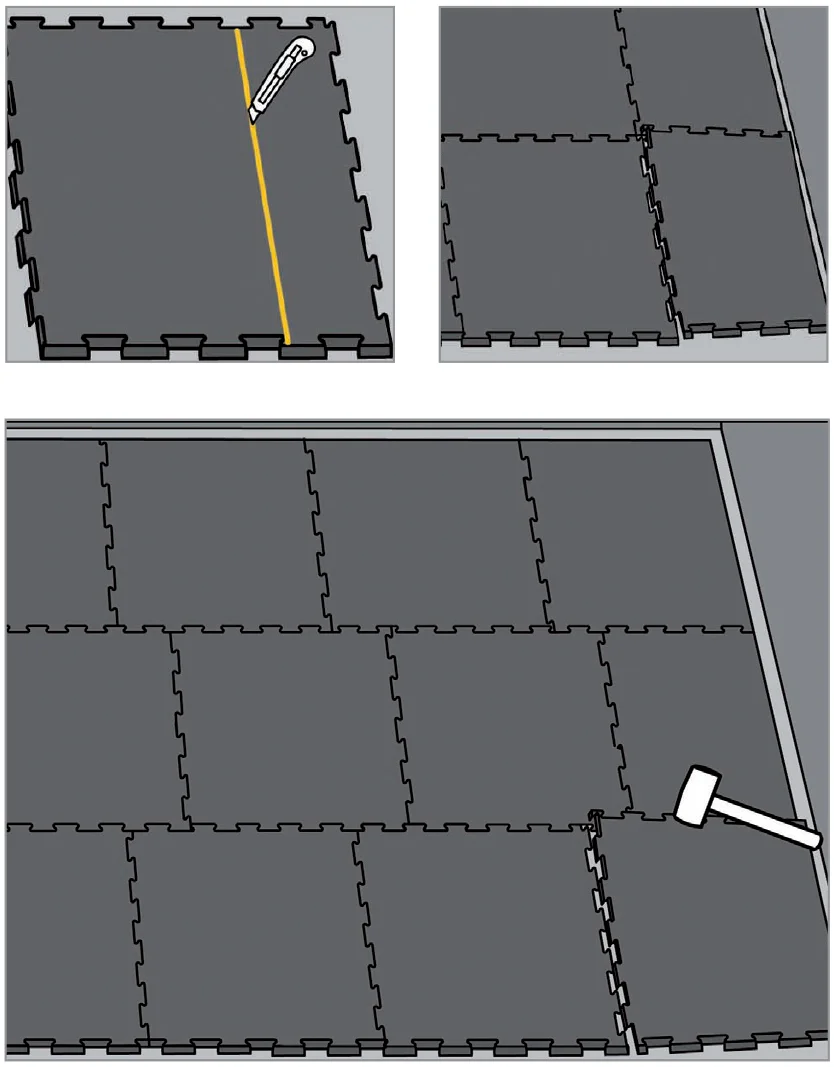

easure the area and pre-plan the layout of your mats to suit your requirements. Cut mats where required, or remove puzzle-cut edge adjacent to the wall to create a snug fit. Use a mallet and tap puzzle-cut pieces into place, ensuring all adjoining edges are interlocking. It’s that simple!

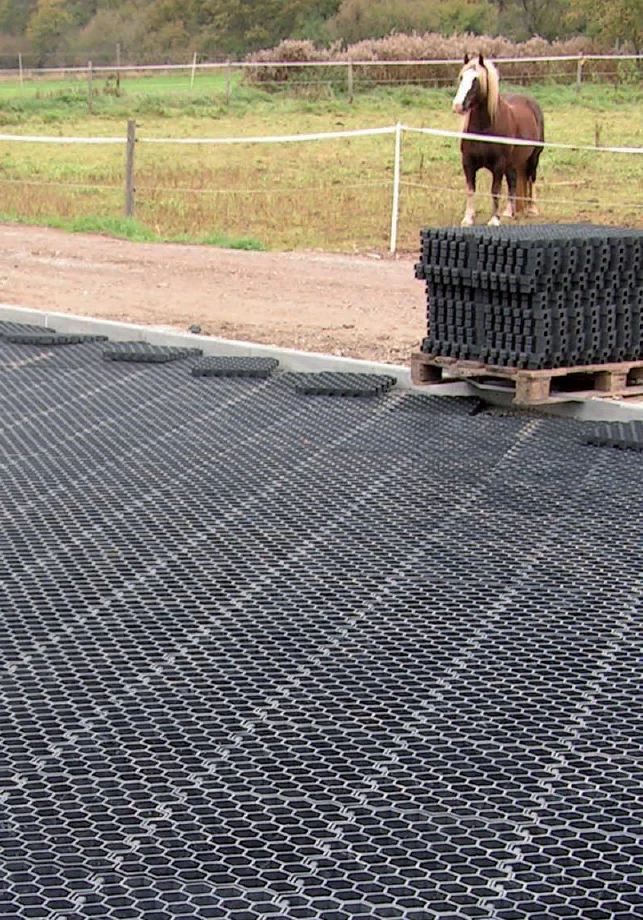

These tiles reinforce or seal the ground surface. Their applications include paddocks, riding arenas, roaming and feeding areas. They are also tried and tested for use in areas for storage, pitches, parking and constructing tracks or paths. Advantages include a high level of stability due to thick cell walls (approx. 5mm), easy to lay, manipulate and adapt at the edges, sturdy connectors, minimal sealing, quick draining, freeze-proof and UV-resistant.
Colour: black, recycled material. Dimensions 500 x 400 x 40mm, size approx. 0.2m2, weight 2.1kg/tile, quantity required approx.
5 tiles per m2.
Equiground® is made of high-quality, impact-resistant plastic (PP). Equiground® is 100% recyclable and does not pollute the groundwater. Advantages – you can lay the grid yourself, it’s easy to handle, highly impact-resistant despite the minimised footing layer, good water drainage and made from environmentally-friendly recycled plastic. Hook connection system.
Colour: black. Dimensions 640 x 330 x 38mm, 5.45 tiles per m2.

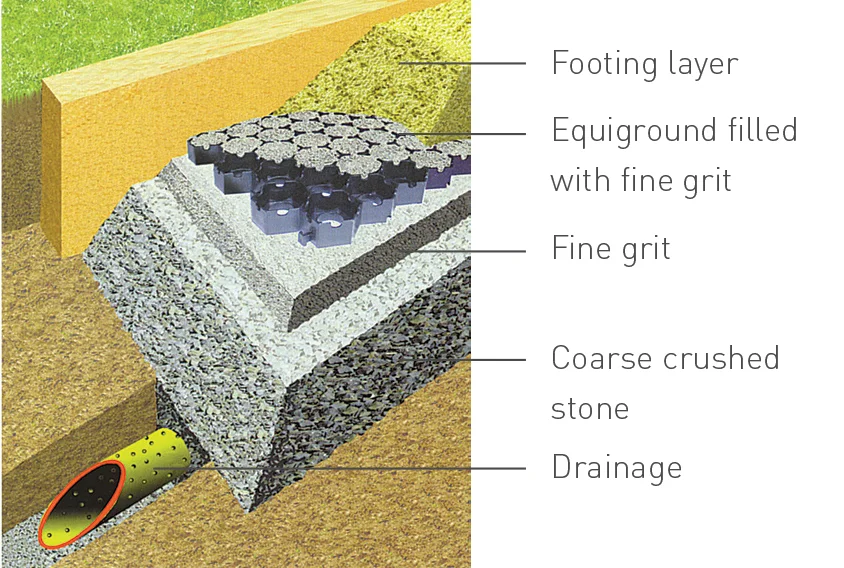

The sturdy grid structure of the Equiground® layer separation system distributes the point load of the hooves over a large area, preventing the footing layer and substrate from mixing and compacting.
